Pergatech3D

Structured Light Scanning System

Scan more, better,

faster, for less Learn more

Pergatech3D

Overview

Pergatech3D is a structured light 3D Scanning system that can quickly turn objects into 3D models through Pergatech‘s scanning software Apollonius3D. Unlike most 3D scanning devices, which must sacrifice image quality for affordability, Pergatech3D maintains high-speed, high-quality image capture at a reasonable price.

Implementation areas

  • Quality control / assessment
  • Rapid prototyping
  • Product customization
  • Reverse engineering
  • Medicine (especially orthopedics)
  • Digital arts (animation)
  • Hobby
  • And many more…

Scanning specifications

Scan size: 0.5 to 60 inches

Scan quality: Up to 1.3 million vertices (400 dots per inch) mesh density

Scanning time: Four to six seconds per single scan

3D data output formats: STL, OBJ, ASC, PCL, PLY

System requirements

Software:

  • Standard PC with Microsoft Windows 7,8,10 operating systems (32 or 64 bit)

Hardware:

  • Dual core 2 GHz CPU 8 GB memory 3D Graphics card (2 GB and more recommended)

Contents

  • Two industrial cameras
  • One multimedia projector
  • Calibration tool
  • Base with camera slide
  • Tripod
  • Connection cables
  • Adapters
  • USB drive with Apollonius3D Software
FAQ

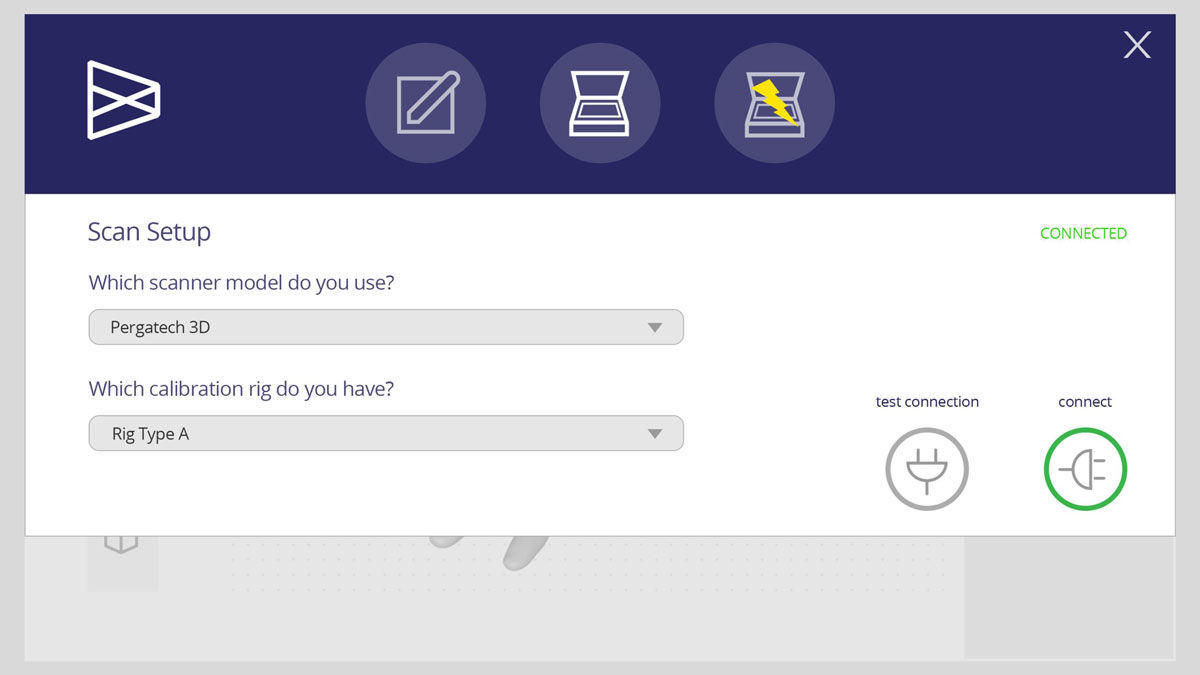

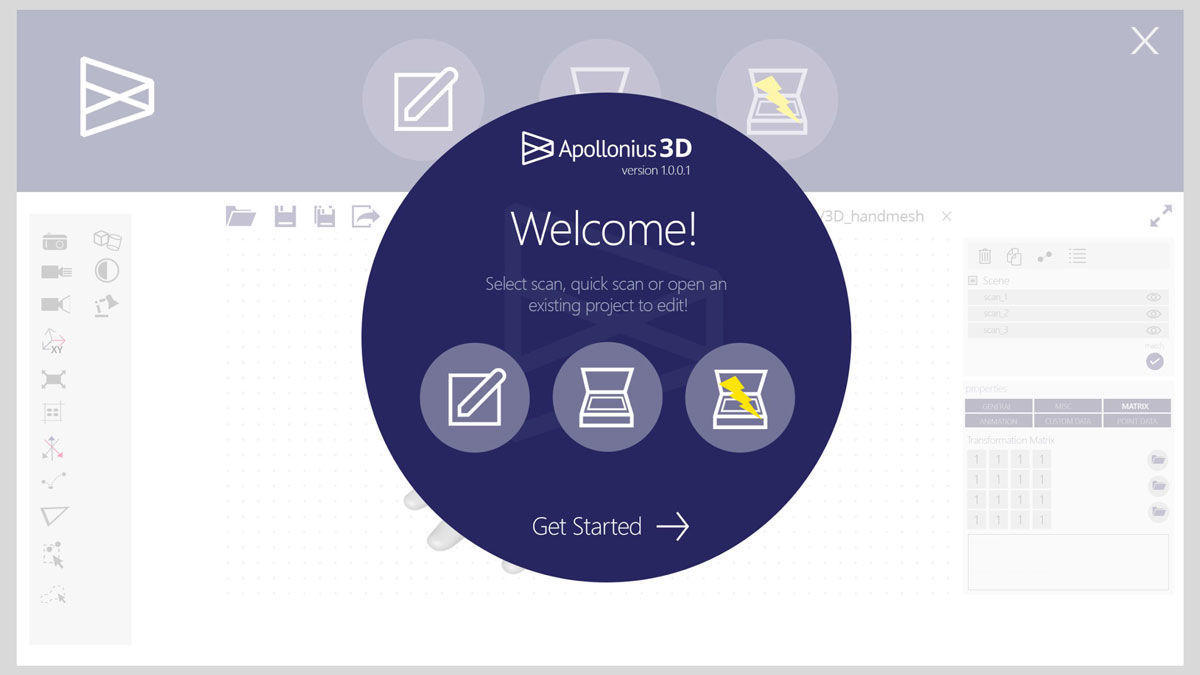

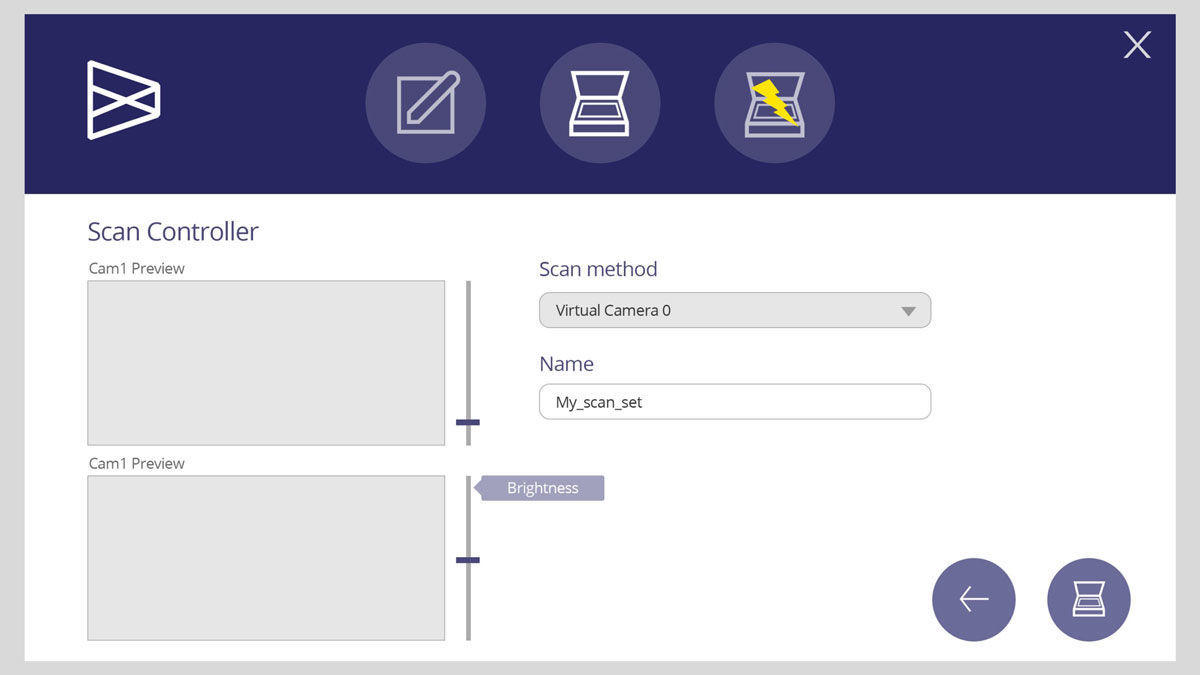

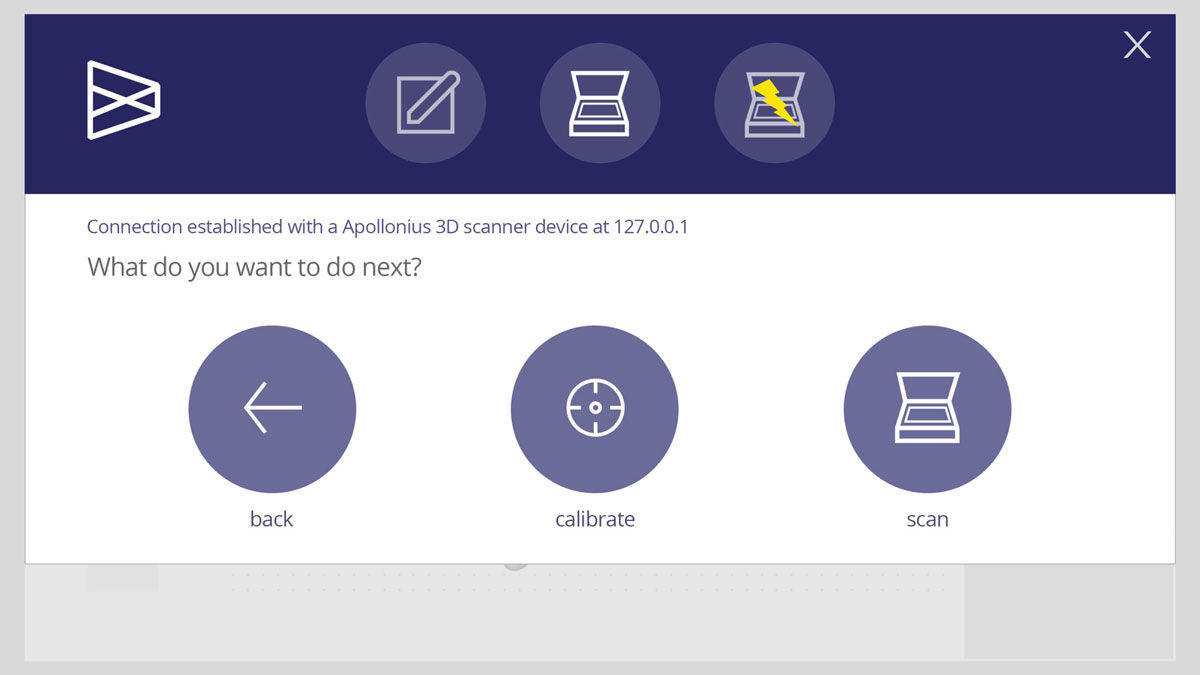

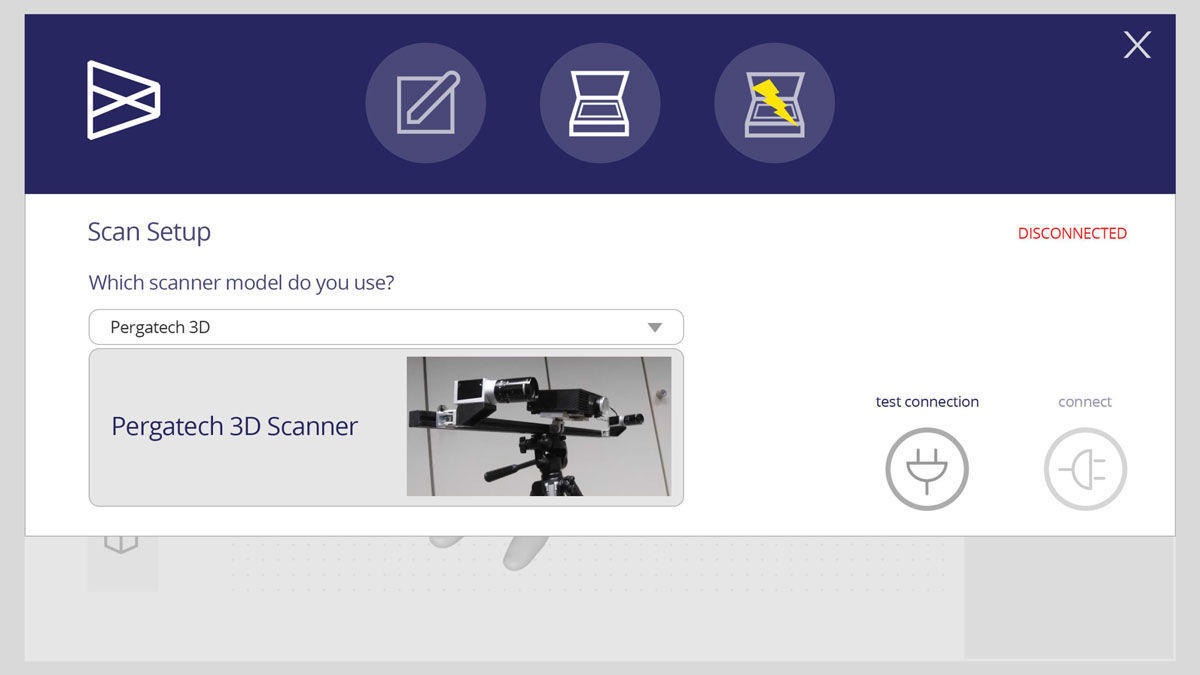

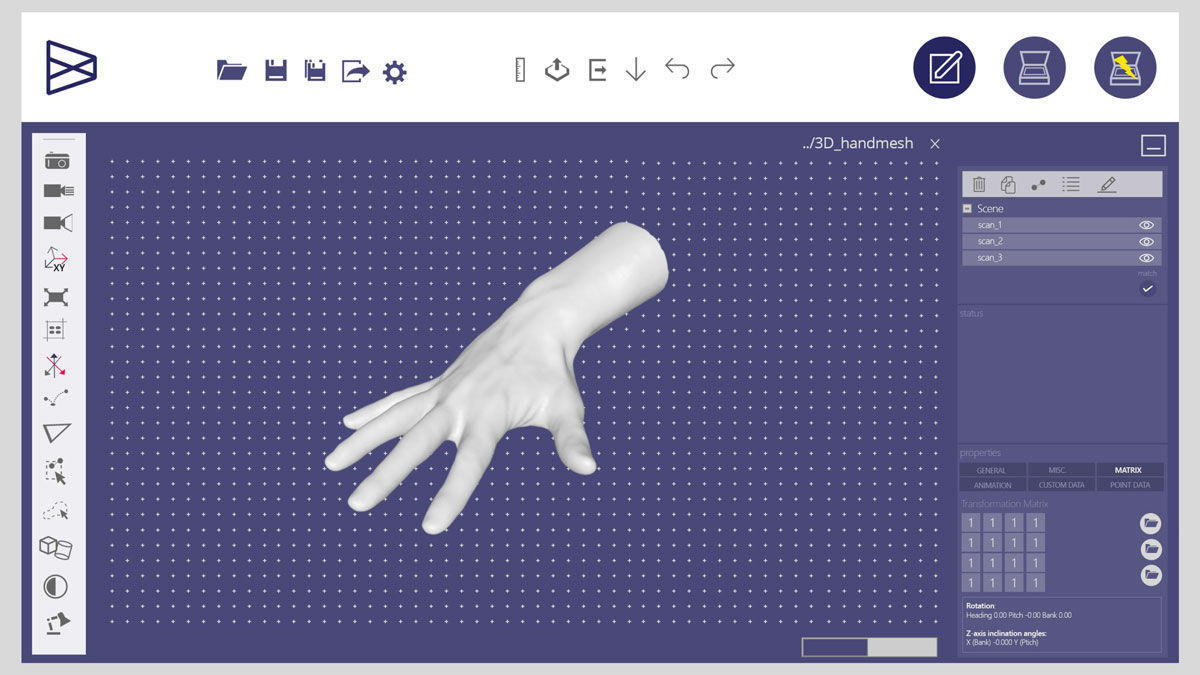

Apollonius3D

Overview

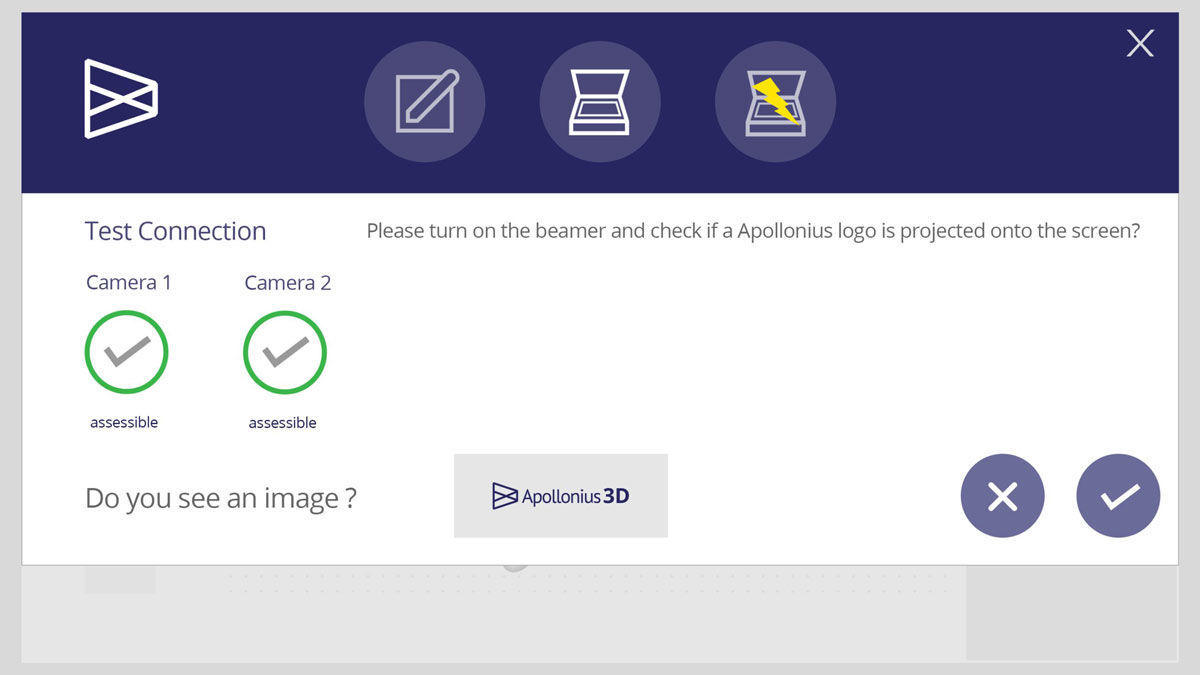

Apollonius3D is Pergatech‘s image capturing and editing software that can quickly turn objects into 3D models. With Apollonoius3D, users can modify, improve and share 3D models for various purposes including digital design and 3D printing.

Implementation areas

  • Quality control / assessment
  • Rapid prototyping
  • Product customization
  • Reverse engineering
  • Medicine (especially orthopedics)
  • Digital arts (animation)
  • Hobby
  • And many more…

Software specifications

Hardware compatibility:

  • Compatible with most industrial cameras that have drivers for Microsoft Windows 7,8,10 operating systems.
  • Compatible with almost all multimedia projectors.

User interface:

  • Simple, straightforward and easy to use.
  • 3D data output formats: STL, OBJ, ASC, PCL, PLY

System requirements

Software:

  • Standard PC with Microsoft Windows 7,8,10 operating systems (32 or 64 bit)

Hardware:

  • Dual core 2 GHz CPU
  • 8 GB memory
  • 3D Graphics card (2 GB and more recommended)

Contents

USB drive with Apollonius3D Software

FAQ

FAQ

What is the Pergatech3D Scanner ?

Pergatech3D is a structured light 3D Scanning system that can quickly turn objects into 3D models through a software called Apollonius3D.

With Apollonius3D, users can modify, improve, and share 3D models for various purposes including digital design and 3D printing.

What is special about the Pergatech3D Scanner ?

Unlike most 3D scanning devices, which must sacrifice image quality for affordability, Pergatech3D maintains high-speed, high-quality image capture at a reasonable price.

The Pergatech3D software, Apollonius3D, gives users the flexibility to change the hardware components at any time and still remain compatible with each other.

What can the Pergatech3D scanner be used for ?
  • Quality control / assessment
  • Rapid prototyping
  • Product customization
  • Reverse engineering
  • Medicine (especially orthopedics)
  • Digital arts (animation)
  • Hobby
Who is the Pergatech3D Scanner for ?

Anyone who wants to create 3D data for objects of up to 60 inches. Users may include people in the fields of reverse engineering, quality inspection, arts, science, and medicine.

What kind of scan quality I can expect from the Pergatech3D Scanner ?

1.3 million vertices (400 dots per inch)

Is the Pergatech3D Scanner compatible with 3D printers ?

Yes! The Apollonius3D outputs STL, OBJ, ASC, PCL and PLY files that allow Pergatech3D users to print models on all types of 3D printers.

What are the keys to good 3D scanning results ?

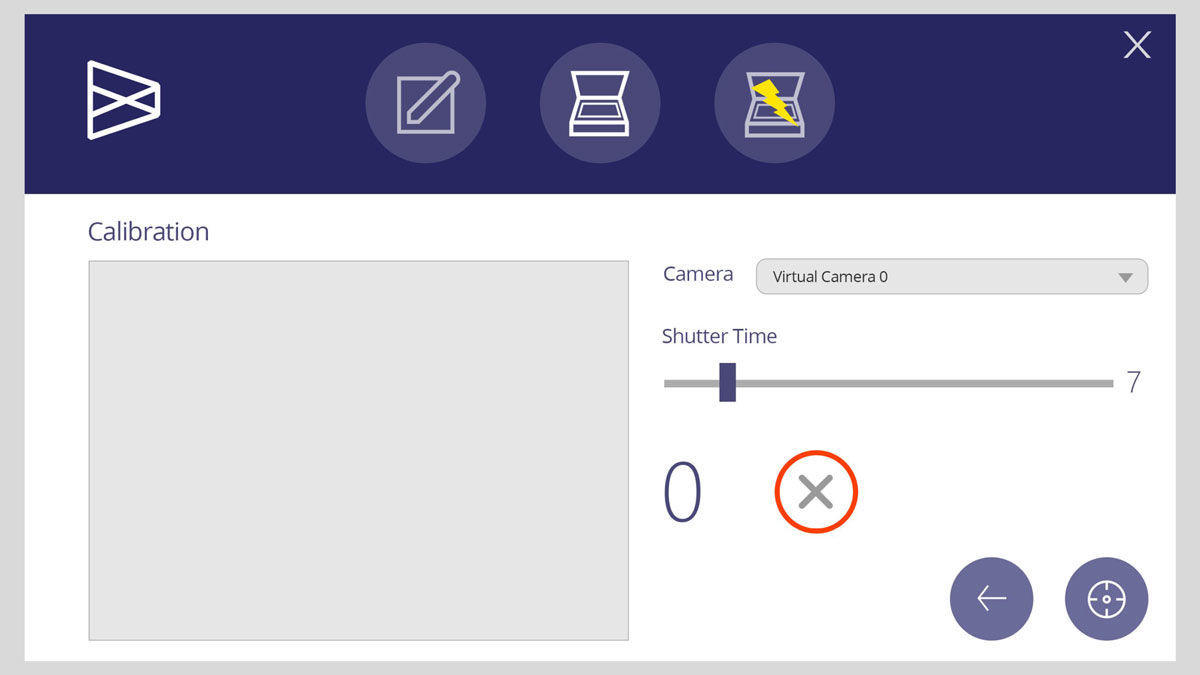

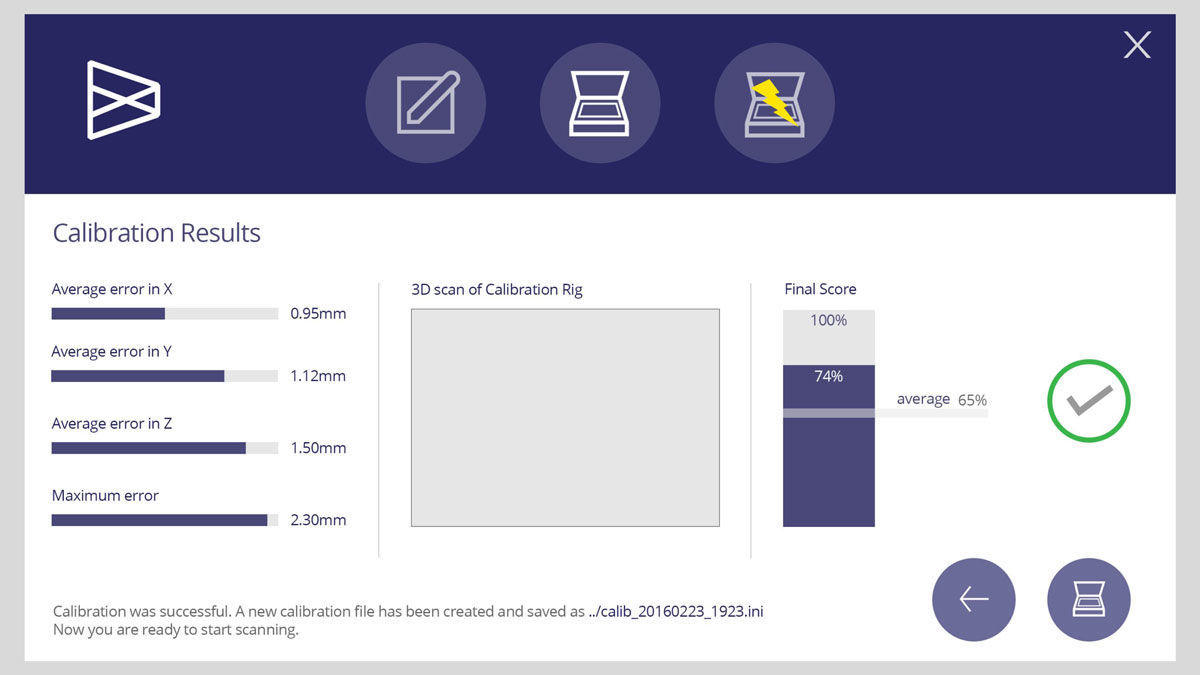

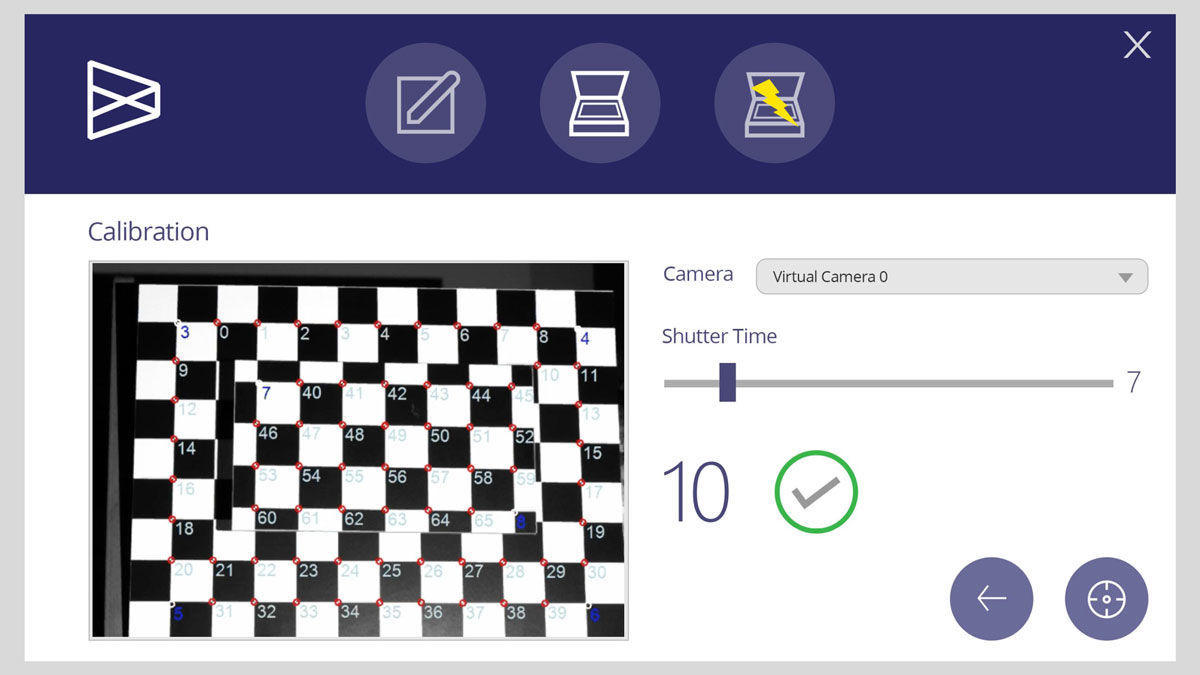

Calibration:

Be sure to follow instructions during the calibration phase for best results.

Lighting and scanning environment:

In order to improve the image quality, reduce the lighting in the room and cover the surface on which your scanned object is resting with a dark cover or cloth.

Special coating spray for dark and transparent objects:

Use of special coating spray for dark and transparent objects will ultimately increase the scanning quality, but it is not necessary to achieve good results.

What lighting environment should I have for best results ?

Pergatech3D comes with a video projector and hence has its own lighting source. Therefore, it is only slightly affected by the lighting environment. However, it is recommended that you keep scanned objects away from bright, powerful light sources and direct sun light.

Does the Pergatech3D scanner capture the color of the surface of my object as it scans ?

Yes!

Can I scan living things, such as my child or pet, or a body part such as my hand ?

Pergatech3D can scan living objects. It is important to note that the movements/motions of the scanned object during the scanning process will affect the scan quality. It is preferred if the scanned object stays still during scanning, which takes only a few seconds.

Can the Pergatech3D Scanner scan machines or items with moving parts ?

Pergatech3D can scan machines and items with moving parts. It is important to note that the movements/motions of the scanned object during the scanning process affect the scan quality. It is preferred if the scanned object stays still during scanning, which takes only a few seconds.

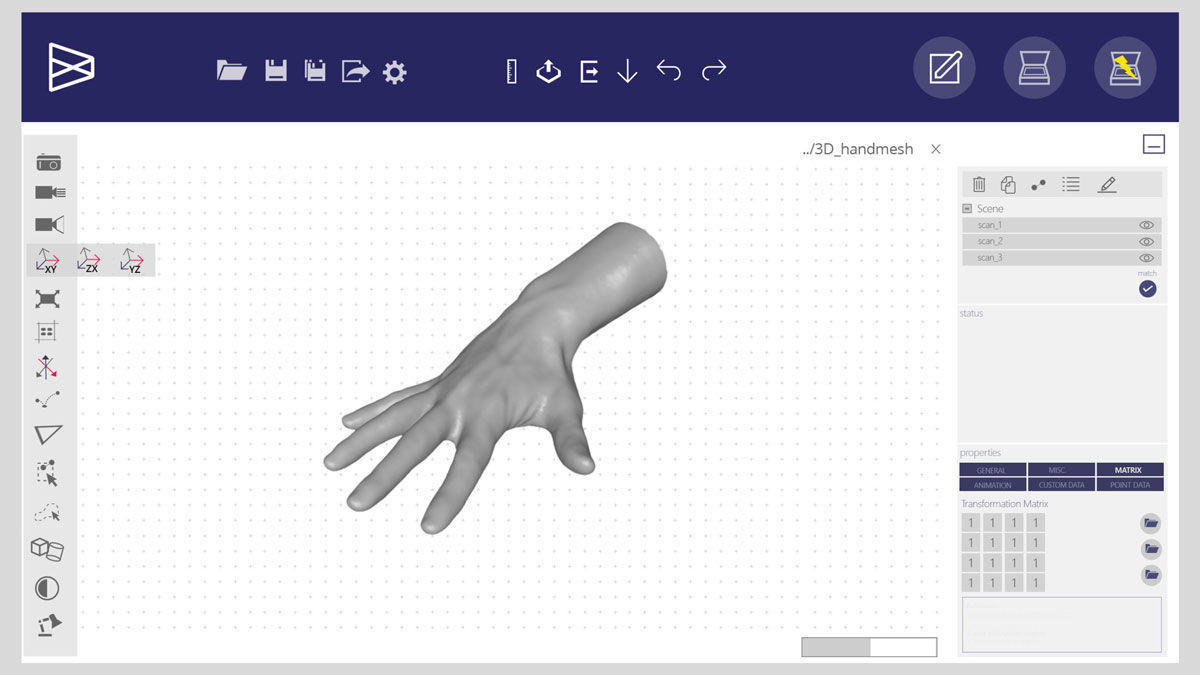

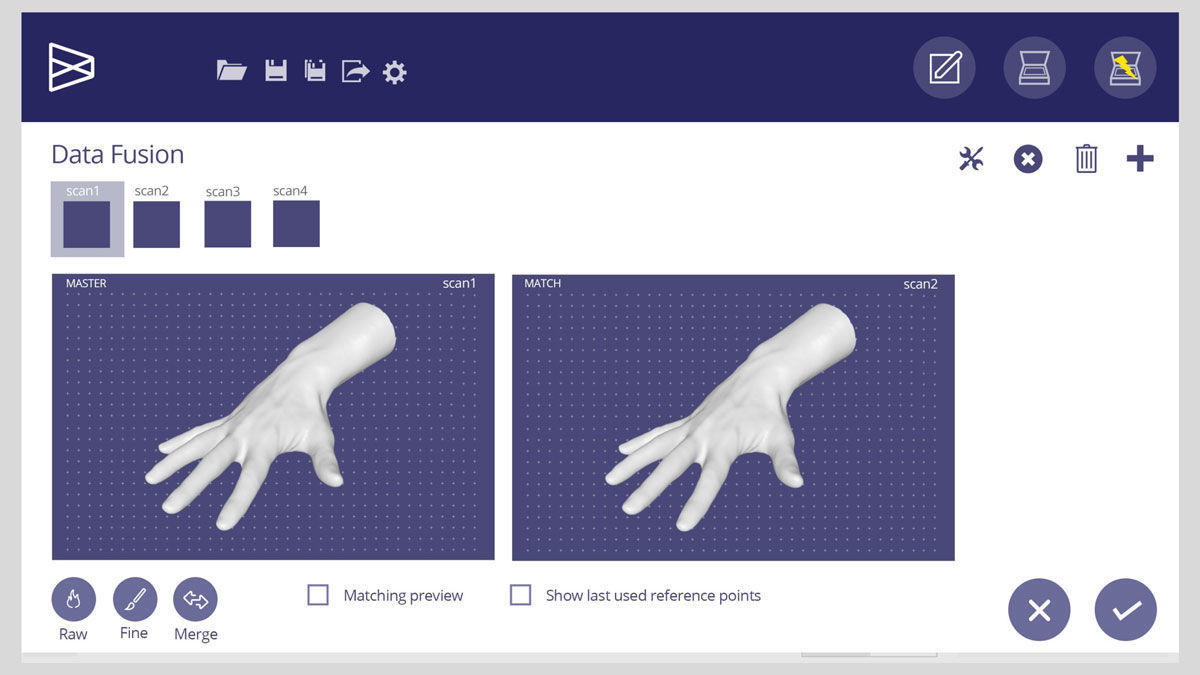

After I scan something with the Pergatech3D Scanner, can I modify the 3D model ?

The 3D models created by Pergatech3D are composed of tens of thousands of points and facets. Pergatech3D lets its users move these points and facets to transform the scanned object into something new. Users can also combine separate models, cut them into pieces, or subtract material from their models.

Is Apollonius3D compatible with OS and OSX systems ?

No! Apollinius3D is not compatible with OS and OSX operating systems.

How does Pergatech protect Pergatech3D’s property rights ?

We are now in the progress of obtaining legal intellectual property protections for all Pergatech products.

Pergatech has filed patent and copyright applications for current and planned Pergatech products. We have ongoing trademark applications for our company name, logo, and products.

Where is the Pergatech3D Scanner manufactured ?

Berlin, Germany

What is the story behind your company and product names ?

Pergatech is inspired by an ancient Greek city called Perga, founded in 1000 BC in what is now the southwestern Mediterranean coast of present-day Turkey.

Apollonius3D comes from Apollonius of Perga, one of the founding fathers of modern geometry. Apollonius of Perga gave the ellipse, the parabola, and the hyperbola their modern names. Apollonius was also an important founder of Greek mathematical astronomy, which used geometrical models to explain planetary theory.

Applications

Scan Size

0.5 to 60 inches.

Scanning Time

4 — 6 seconds.

Mesh Density

Up to 1.3 million vertices

(400 dots per inch).



About Us

Pergatech develops artificial intelligence and computer vision solutions for businesses. Pergatech, Inc. was incorporated in February, 2016 as a C-Corp in Delaware, USA. The company is registered in Minnesota.

Since inception, we've developed:

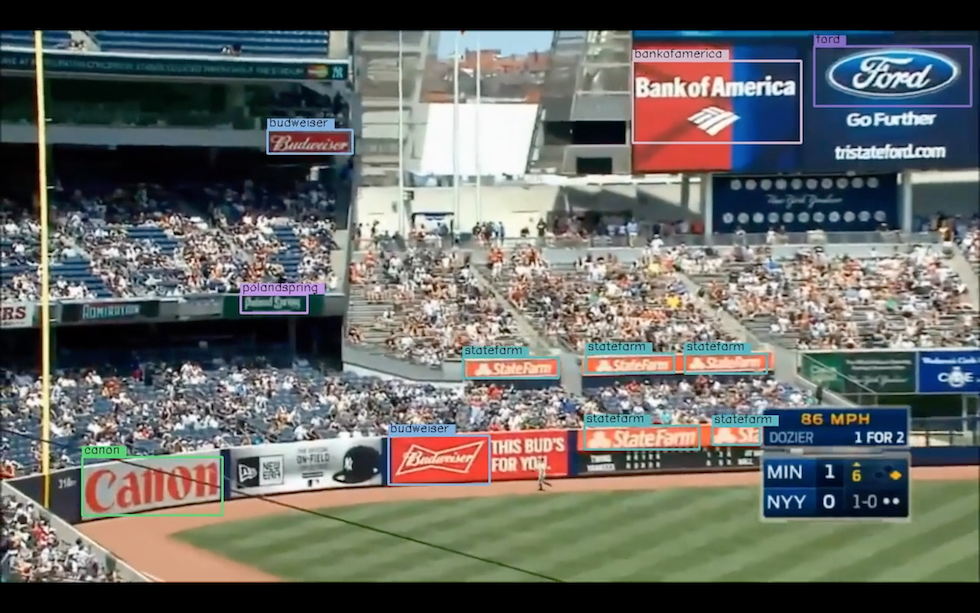

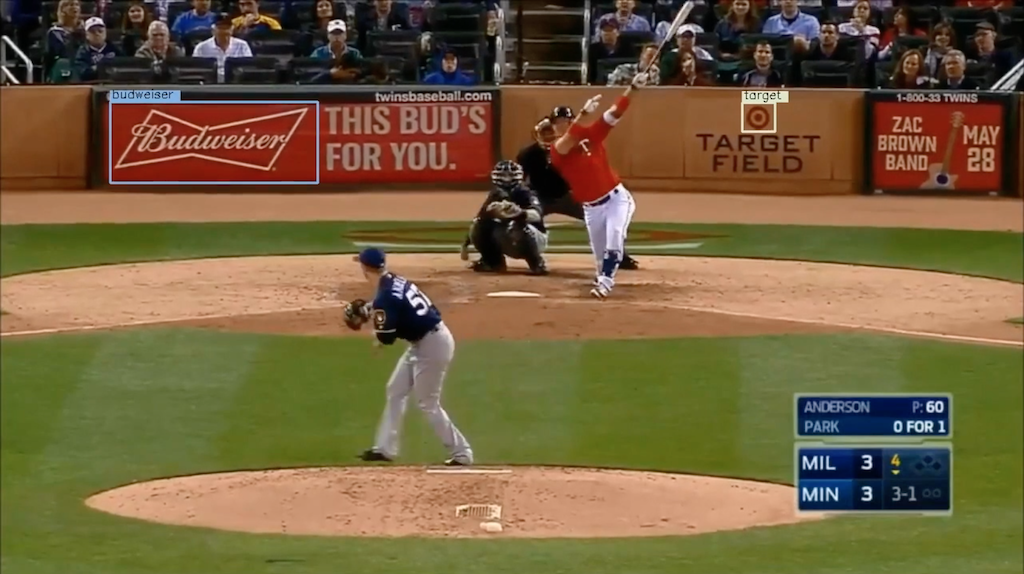

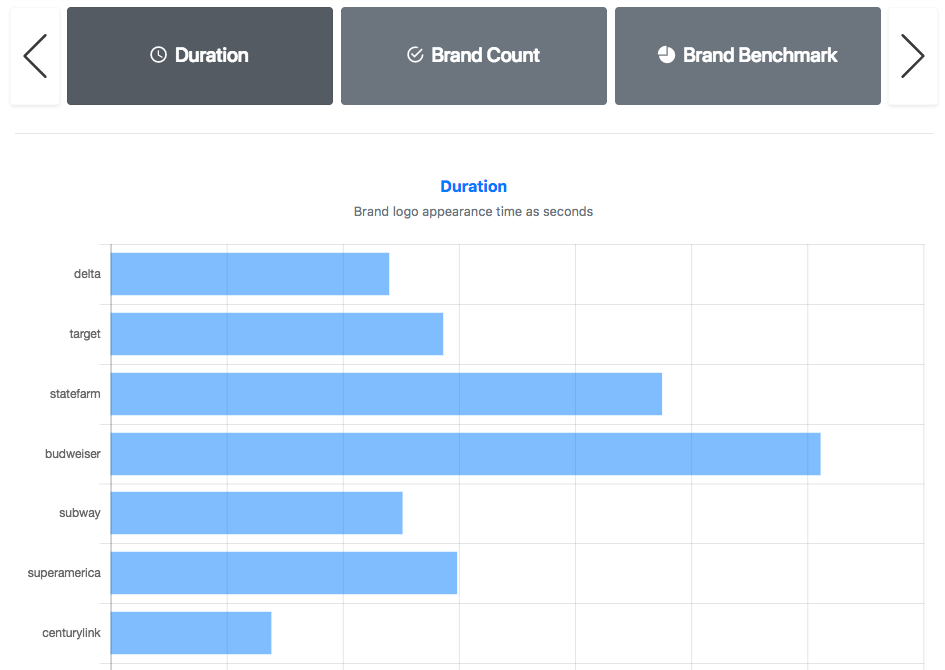

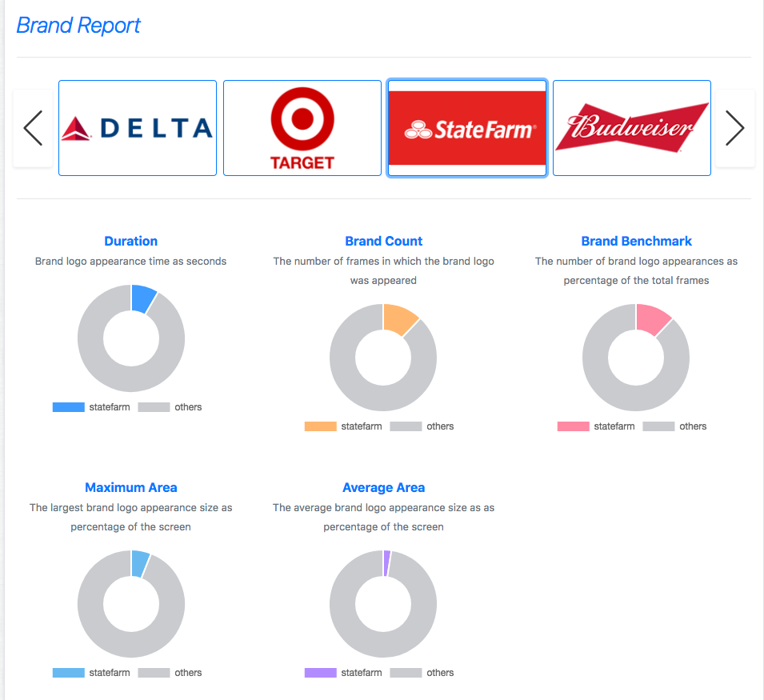

2018: Pergatech Sports: Artificial intelligence (AI)-powered, data-driven brand analytics platform providing accurate media impact measurement and evaluation of sports sponsorships.

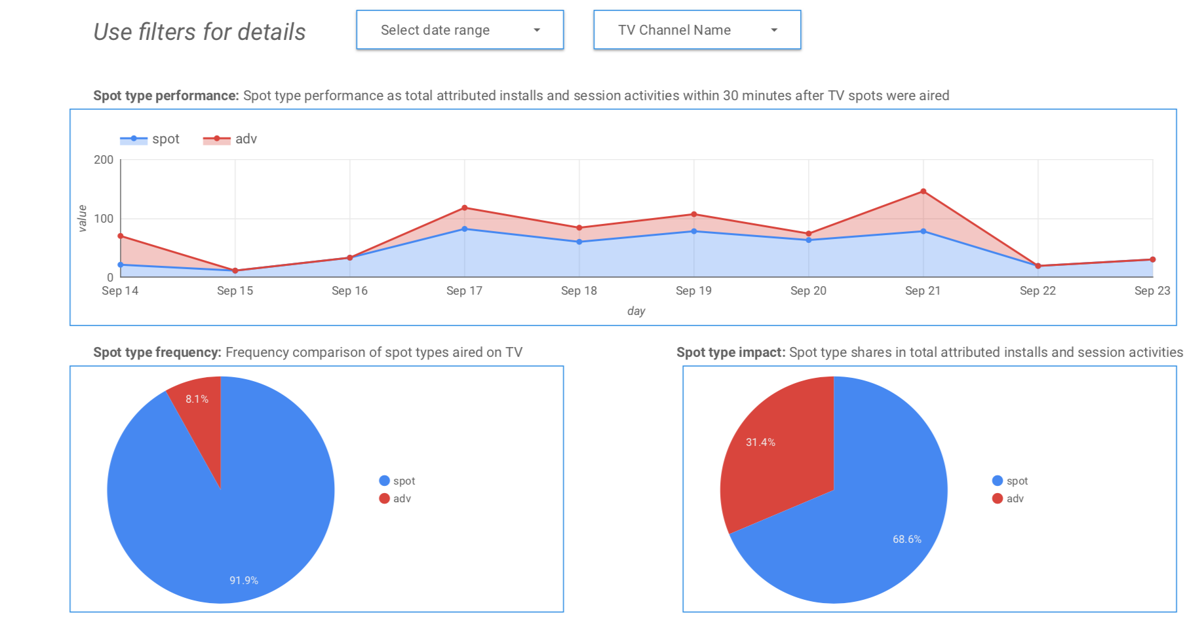

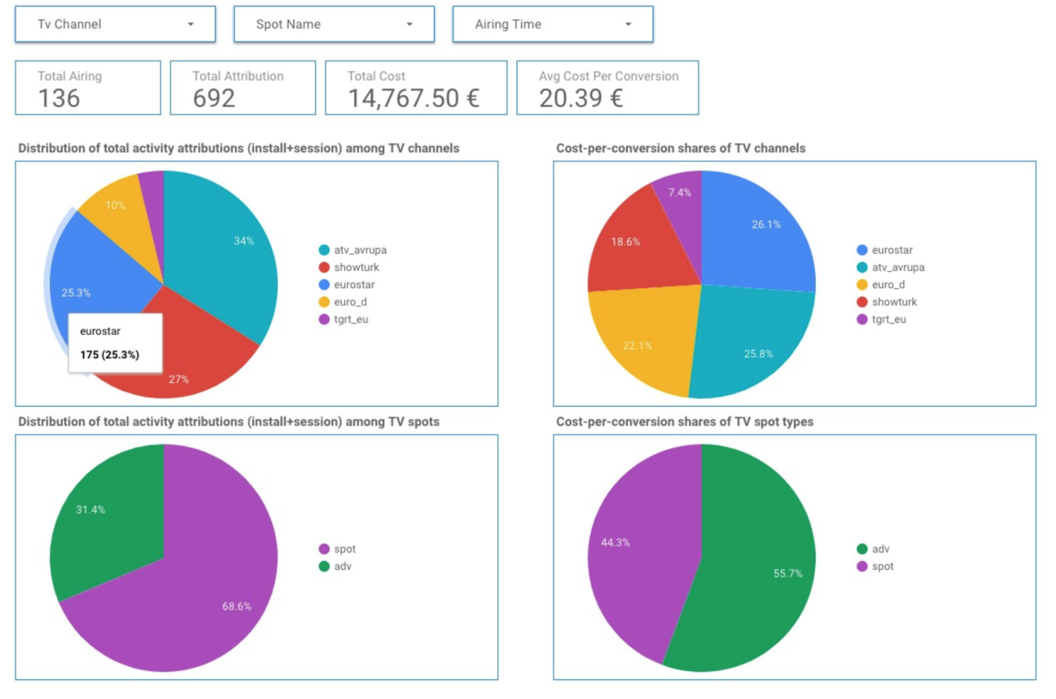

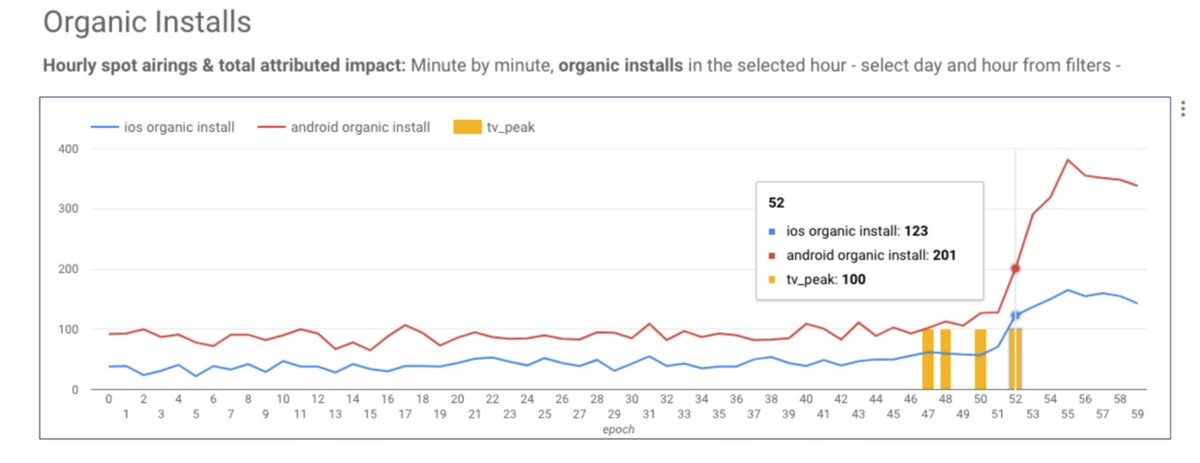

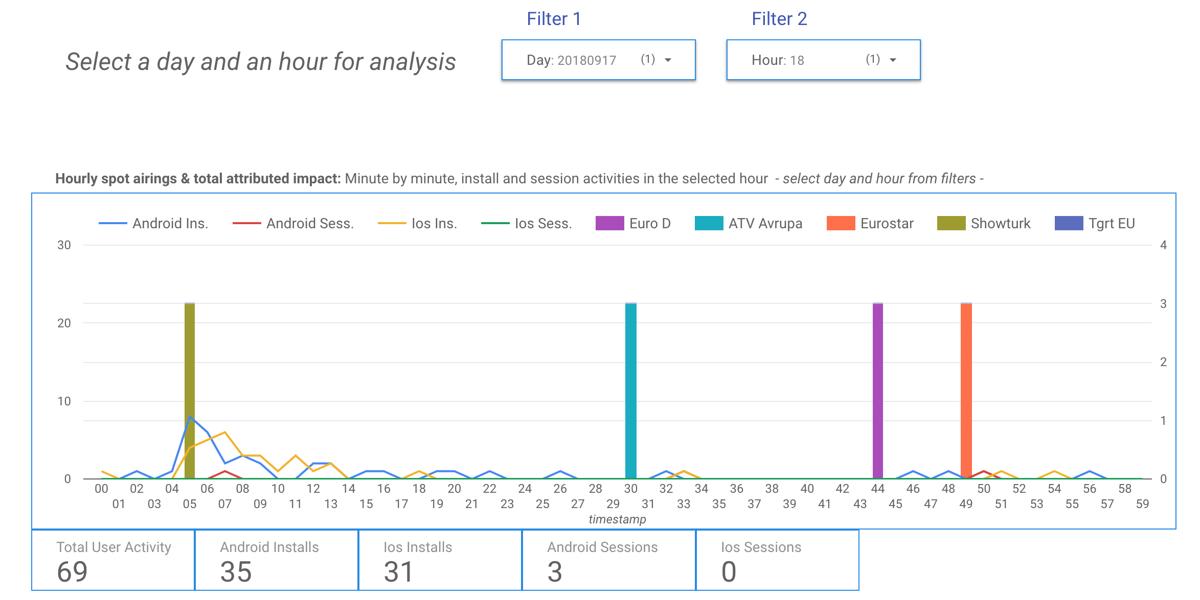

2018: Pergatech Track: AI-powered, data-driven brand analytics platform that quantifies the link between TV advertising campaigns and online consumer response.

2017: Deep learning-based inventory counting software platform for leading flooring industry business in Atlanta, USA. The inventory counting software platform uses advanced computer vision and machine learning technologies to scan inventory items with high speed, complete measurement accuracy, and reliability so that the client could minimize the operational errors by simultaneously maximizing the efficiency.

2016: Structured-light 3D scanner (Pergatech 3D) and an image acquisition and data processing software (Apollonius3D).

As an early-stage technology company, Pergatech is actively seeking joint ventures and R&D partnerships.

Team & Jobs

Team

Pergatech has an international team of scientists, software developers and project managers based in Turkey, Germany and USA. We are always looking forward to getting in touch with like-minded entrepreneurs, software engineers and researchers in the computer vision field. You can get in touch with us via contact@pergatech.com .

Jobs

Pergatech always looks forward to meeting self-motivated software engineers who are interested in developing cutting-edge technologies in the computer vision and image processing space. Please tell us your story by sending an email to jobs@pergatech.com

Volkan Emre, CEO
Volkan Emre, CEO

Volkan Emre is a seasoned project manager, entrepreneur, and co-founder and CEO of Pergatech.  Volkan is responsible for the overall management of the Pergatech team, business development, and financial oversight and R&D partnerships and strategy.
